Page 175 - Jupiter Product Guide 2025 Rev N

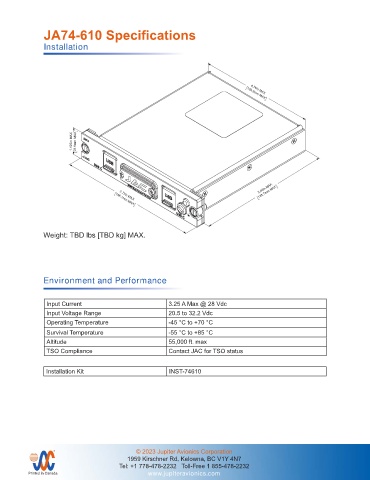

JA74-610 Specifications

Installation 120.9mm MAX

4.76in MAX

1.125in MAX 28.6mm MAX

5.46in MAX
138.7mm MAX
5.75in MAX
146.1mm MAX

Weight: TBD lbs [TBD kg] MAX.
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Dual USB-C Charger and Bluetooth
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA74-610 1/1
Environment and Performance CONFIDENTIAL & PROPRIETARY DOC. NO.
N/A
MATERIAL:
FINISH: N/A TO JUPITER AVIONICS CORP. JA74-610 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Input Current 3.25 A Max @ 28 Vdc
Input Voltage Range 20.5 to 32.2 Vdc
Operating Temperature -45 °C to +70 °C
Survival Temperature -55 °C to +85 °C
Altitude 55,000 ft. max
TSO Compliance Contact JAC for TSO status

Installation Kit INST-74610

© 2023 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: +1 778-478-2232 Toll-Free 1 855-478-2232
Printed in Canada www.jupiteravionics.com
Printed in Canada
