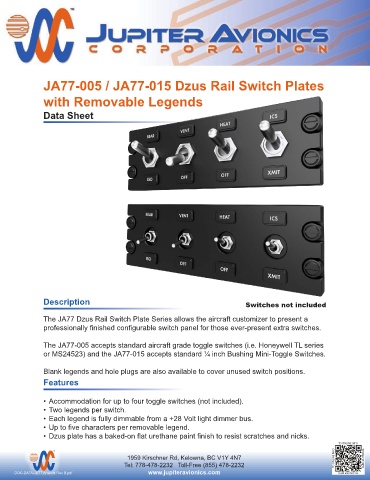

JA77-005 / JA77-015 Dzus Rail Switch Plates

with Removable Legends

Data Sheet

Description Switches not included

The JA77 Dzus Rail Switch Plate Series allows the aircraft customizer to present a
professionally finished configurable switch panel for those ever-present extra switches.

The JA77-005 accepts standard aircraft grade toggle switches (i.e. Honeywell TL series
or MS24523) and the JA77-015 accepts standard ¼ inch Bushing Mini-Toggle Switches.

Blank legends and hole plugs are also available to cover unused switch positions.
Features

• Accommodation for up to four toggle switches (not included).
• Two legends per switch.
• Each legend is fully dimmable from a +28 Volt light dimmer bus.
• Up to five characters per removable legend.
• Dzus plate has a baked-on flat urethane paint finish to resist scratches and nicks.
