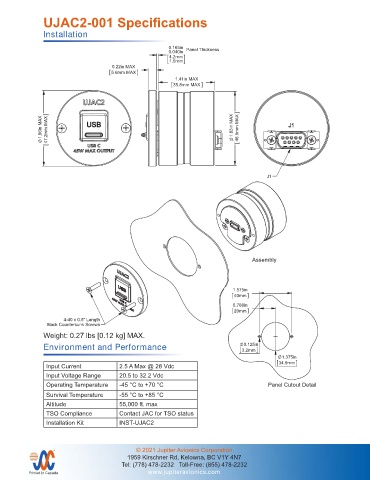

UJAC2-001 Specifications

Installation

0.165in
0.040in Panel Thickness
4.2mm
1.0mm
0.22in MAX
5.6mm MAX
1.41in MAX
35.8mm MAX

1.86in MAX 47.2mm MAX 1.83in MAX 46.5mm MAX

J1

Assembly

1.575in
40mm
0.788in
20mm
4-40 x 0.5" Length
Black Countersunk Screws
Weight: 0.27 lbs [0.12 kg] MAX.
0.125in
Environment and Performance 3.2mm
1.375in
Input Current 2.5 A Max @ 28 Vdc 34.9mm
Input Voltage Range 20.5 to 32.2 Vdc
Operating Temperature -45 °C to +70 °C Panel Cutout Detail

Survival Temperature -55 °C to +85 °C
UNLESS OTHERWISE SPECIFIED PREPARED NAME
ANGLES ARE IN DEGREES 55,000 ft. max
Altitude DIMENSIONS ARE IN INCHES
TOLERANCES:
TSO Compliance 0.1 Contact JAC for TSO status
1 DEC PLACE:
CHECKED
2 DEC PLACE: 0.01
TITLE
3 DEC PLACE: 0.005
Installation Kit 0.5 DEG INST-UJAC2 TITLE
ANGLES:
APPROVED NCAGE CODE PART NO. SHEET
L00N3 XXX-XXXX-XXXX 1/1
MATERIAL: See Notes CONFIDENTIAL & PROPRIETARY DOC. NO.
