Page 187 - Jupiter Product Guide 2025 Rev N

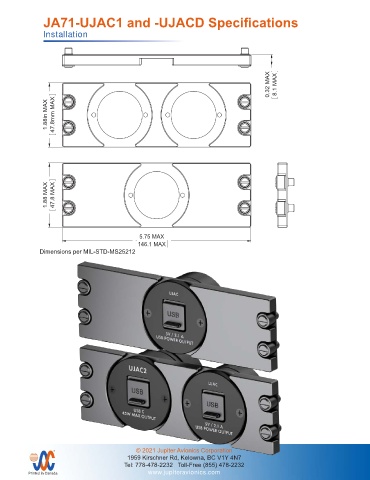

JA71-UJAC1 and -UJACD Specifications

Installation

0.32 MAX 8.1 MAX

1.88in MAX 47.8mm MAX

1.88 MAX 47.8 MAX

5.75 MAX
146.1 MAX
Dimensions per MIL-STD-MS25212
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
CENTER OF GRAVITY 3 DEC PLACE: 0.005 Five Dzus - Single UJAC Mounting Plate
ANGLES: 0.5 DEG
0.03in [0.8mm]
WEIGHT: 0.17 lbs [0.08 kg] MAX. APPROVED NCAGE CODE PART NO. SHEET
L00N3
1/1
JA71-UJAC1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
FINISH: N/A TO JUPITER AVIONICS CORP. JA71-UJAC1 Mechanical Installation Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT

© 2021 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Printed in Canada www.jupiteravionics.com
