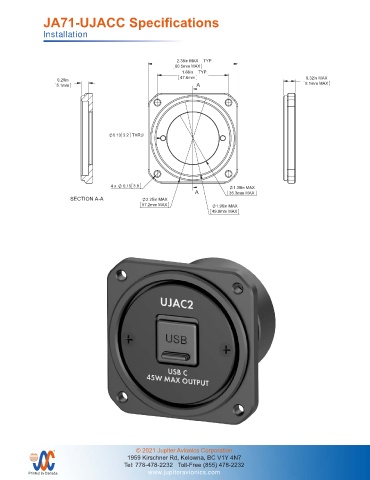

JA71-UJACC Specifications

Installation

2.38in MAX TYP.
60.5mm MAX
1.88in TYP.
47.6mm 0.32in MAX
0.20in
5.1mm A 8.1mm MAX

0.13 3.2 THRU

4 x 0.15 3.8 1.39in MAX
A 35.3mm MAX
SECTION A-A 2.25in MAX
57.2mm MAX 1.96in MAX
49.8mm MAX

UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Clock Mount - Single UJAC Mounting Plate
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA71-UJACC 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA71-UJACC Mechanical Installation Rev A.SLDDRW
