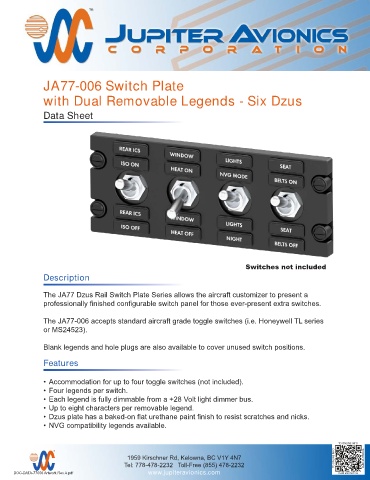

JA77-006 Switch Plate
with Dual Removable Legends - Six Dzus
Data Sheet
Switches not included
Description
The JA77 Dzus Rail Switch Plate Series allows the aircraft customizer to present a
professionally finished configurable switch panel for those ever-present extra switches.
The JA77-006 accepts standard aircraft grade toggle switches (i.e. Honeywell TL series
or MS24523).
Blank legends and hole plugs are also available to cover unused switch positions.
Features
• Accommodation for up to four toggle switches (not included).
• Four legends per switch.
• Each legend is fully dimmable from a +28 Volt light dimmer bus.
• Up to eight characters per removable legend.
• Dzus plate has a baked-on flat urethane paint finish to resist scratches and nicks.
• NVG compatibility legends available.
