Page 185 - Jupiter Product Guide 2025 Rev N

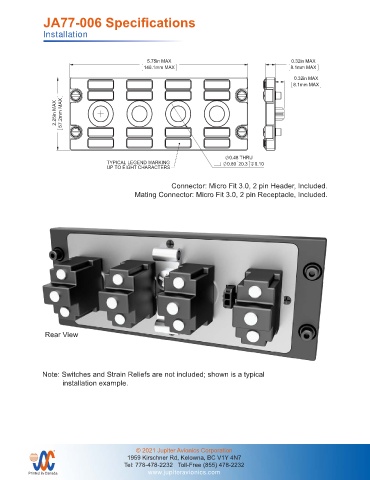

JA77-006 Specifications

Installation

5.75in MAX 0.32in MAX
146.1mm MAX 8.1mm MAX

0.32in MAX
8.1mm MAX

2.25in MAX 57.2mm MAX

0.48 THRU
TYPICAL LEGEND MARKING 0.80 20.3 0.10
UP TO EIGHT CHARACTERS

Connector: Micro Fit 3.0, 2 pin Header, Included.
Mating Connector: Micro Fit 3.0, 2 pin Receptacle, Included.

UNLESS OTHERWISE SPECIFIED PREPARED TAT
Rear View DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 TITLE
3 DEC PLACE: 0.005 Switch Plate with Dual Removable Legends - Six Dzus
ANGLES: 0.5 DEG
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA77-006 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
Note: Switches and Strain Reliefs are not included; shown is a typical TO JUPITER AVIONICS CORP. JA77-006 Mechanical Installation Rev A.SLDDRW
N/A
FINISH:
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEB REV B.DRWDOT
installation example.

© 2021 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Printed in Canada www.jupiteravionics.com
