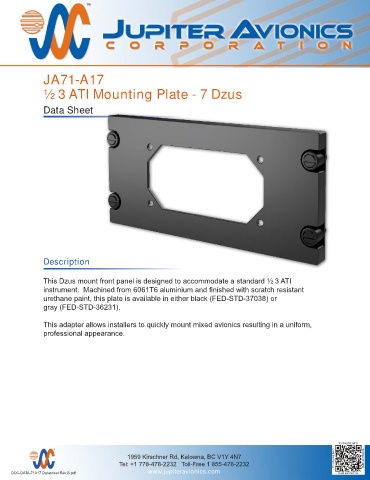

JA71-A17


               ½ 3 ATI Mounting Plate - 7 Dzus

               Data Sheet






























               Description


               This Dzus mount front panel is designed to accommodate a standard ½ 3 ATI
               instrument.  Machined from 6061T6 aluminium and finished with scratch resistant
               urethane paint, this plate is available in either black (FED-STD-37038) or
               gray (FED-STD-36231).


               This adapter allows installers to quickly mount mixed avionics resulting in a uniform,
               professional appearance.
