Page 193 - Jupiter Product Guide 2025 Rev N

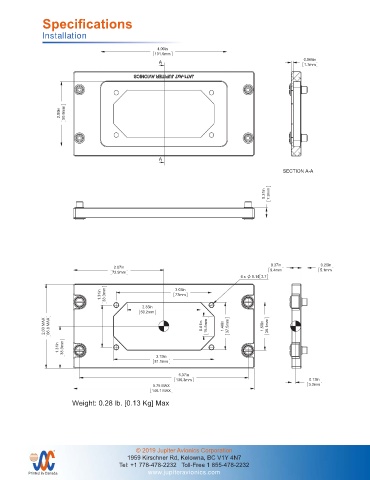

Specifications

Installation

4.00in
101.6mm
A 0.065in
1.7mm

2.00in 50.8mm

A

SECTION A-A

0.31in 7.9mm

2.87in 0.37in 0.20in
72.9mm 9.4mm 5.1mm
4 x 0.14 3.7

1.31in 33.3mm 3.03in
77mm
2.33in
59.2mm
2.63 MAX 66.8 MAX 0.61in 15.5mm 1.48in 37.5mm 1.50in 38.1mm

1.31in 33.3mm
3.19in
81.1mm

5.37in
136.3mm 0.13in
5.75 MAX 3.3mm
146.1 MAX
Weight: 0.28 lb. [0.13 Kg] Max
