Page 47 - Jupiter Product Guide 2024 Rev M

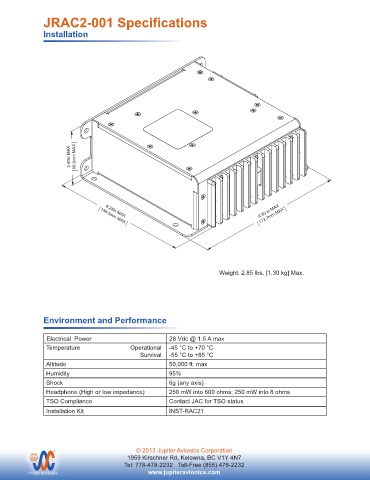

JRAC2-001 Specifications

Installation

2.60in MAX 66.0mm MAX

6.80 in MAX
172.7mm MAX
6.28in MAX
159.5mm MAX

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES Weight: 2.85 lbs. [1.30 kg] Max.
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Dual Remote Audio Controller
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JRAC2-001 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
Environment and Performance TO JUPITER AVIONICS CORP. JRAC2-001 3D Model Rev C.SLDDRW
FINISH: N/A
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Electrical Power 28 Vdc @ 1.5 A max
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone (High or low impedance) 250 mW into 600 ohms; 250 mW into 8 ohms
TSO Compliance Contact JAC for TSO status
Installation Kit INST-RAC21
