Page 51 - Jupiter Product Guide 2024 Rev M

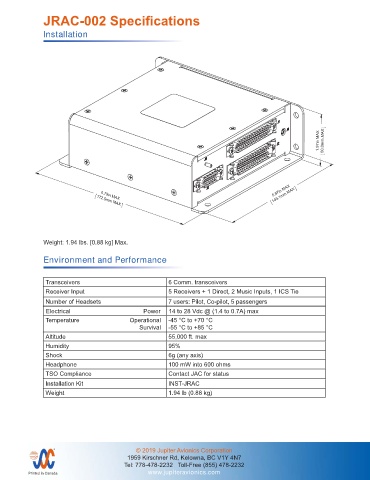

JRAC-002 Specifications

Installation

1.97in MAX 50.0mm MAX

5.87in MAX
149.1mm MAX
6.79in MAX
172.5mm MAX

Weight: 1.94 lbs. [0.88 kg] Max.

UNLESS OTHERWISE SPECIFIED PREPARED TAT
Environment and Performance
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 01-02-19 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Remote Audio Controller
JAC
Transceivers 6 Comm. transceivers
APPROVED 01-10-19 NCAGE CODE PART NO. SHEET
L00N3
JRAC-001
KDV
Receiver Input 5 Receivers + 1 Direct, 2 Music Inputs, 1 ICS Tie 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
Number of Headsets FINISH: N/A 7 users: Pilot, Co-pilot, 5 passengers
TO JUPITER AVIONICS CORP.
JRAC-001 3D Model Rev C.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT DRAWING NOT TO SCALE
Electrical Power 14 to 28 Vdc @ (1.4 to 0.7A) max
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 55,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 100 mW into 600 ohms
TSO Compliance Contact JAC for status
Installation Kit INST-JRAC
Weight 1.94 lb (0.88 kg)

© 2019 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Printed in Canada www.jupiteravionics.com
