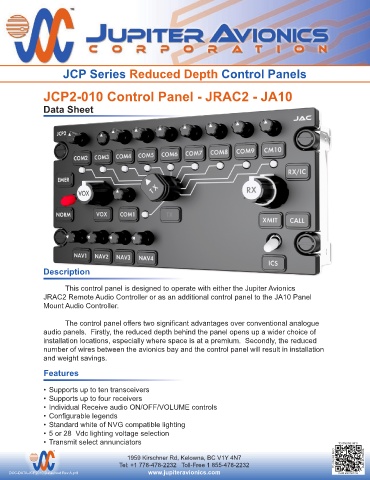

Page 48 - Jupiter Product Guide 2024 Rev M

JCP Series Reduced Depth Control Panels

JCP2-010 Control Panel - JRAC2 - JA10

Data Sheet

Description

This control panel is designed to operate with either the Jupiter Avionics
JRAC2 Remote Audio Controller or as an additional control panel to the JA10 Panel
Mount Audio Controller.

The control panel offers two significant advantages over conventional analogue
audio panels. Firstly, the reduced depth behind the panel opens up a wider choice of
installation locations, especially where space is at a premium. Secondly, the reduced
number of wires between the avionics bay and the control panel will result in installation
and weight savings.

Features

• Supports up to ten transceivers
• Supports up to four receivers
• Individual Receive audio ON/OFF/VOLUME controls
• Configurable legends
• Standard white of NVG compatible lighting
• 5 or 28 Vdc lighting voltage selection
• Transmit select annunciators TO ONLINE INFO
