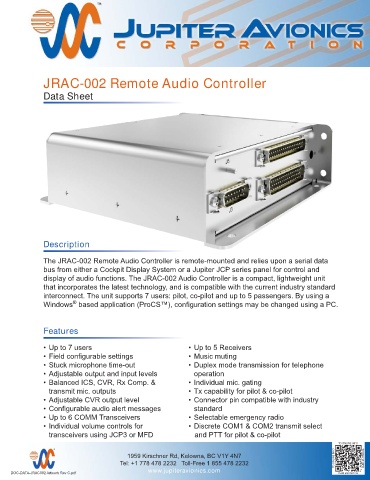

JRAC-002 Remote Audio Controller

Data Sheet

Description

The JRAC-002 Remote Audio Controller is remote-mounted and relies upon a serial data
bus from either a Cockpit Display System or a Jupiter JCP series panel for control and
display of audio functions. The JRAC-002 Audio Controller is a compact, lightweight unit
that incorporates the latest technology, and is compatible with the current industry standard
interconnect. The unit supports 7 users: pilot, co-pilot and up to 5 passengers. By using a
®
Windows based application (ProCS™), configuration settings may be changed using a PC.

Features

• Up to 7 users • Up to 5 Receivers
• Field configurable settings • Music muting
• Stuck microphone time-out • Duplex mode transmission for telephone
• Adjustable output and input levels operation
• Balanced ICS, CVR, Rx Comp. & • Individual mic. gating
trans mit mic. outputs • Tx capability for pilot & co-pilot
• Adjustable CVR output level • Connector pin compatible with industry
• Configurable audio alert messages standard
• Up to 6 COMM Transceivers • Selectable emergency radio
• Individual volume controls for • Discrete COM1 & COM2 transmit select
transceivers using JCP3 or MFD and PTT for pilot & co-pilot
