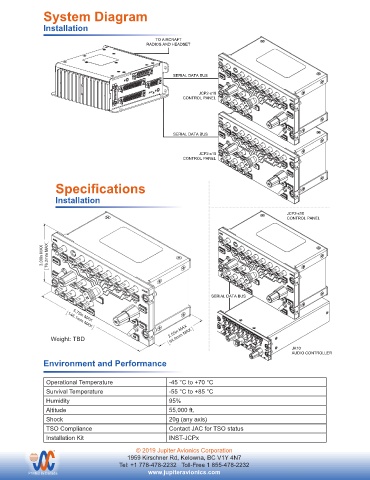

Page 49 - Jupiter Product Guide 2024 Rev M

System Diagram
Installation

TO AIRCRAFT
RADIOS AND HEADSET

SERIAL DATA BUS

JCP2-x10
CONTROL PANEL

SERIAL DATA BUS

JCP2-x10
CONTROL PANEL

Specifications

Installation

JCP2-x10
CONTROL PANEL

3.00in MAX 76.2mm MAX

SERIAL DATA BUS

5.75in MAX
2.55in MAX
146.1mm MAX
Weight: TBD 64.8mm MAX
JA10
AUDIO CONTROLLER
UNLESS OTHERWISE SPECIFIED PREPARED TAT
Environment and Performance
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Control Panel - JRAC2
APPROVED NCAGE CODE PART NO. SHEET
-45 °C to +70 °C
Operational Temperature L00N3 JCP2-010 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
-55 °C to +85 °C
Survival Temperature DRAWING NOT TO SCALE JCP2-010 Fabrication Rev A.SLDDRW
N/A
FINISH:
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Humidity 95%
Altitude 55,000 ft.
Shock 20g (any axis)
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JCPx
