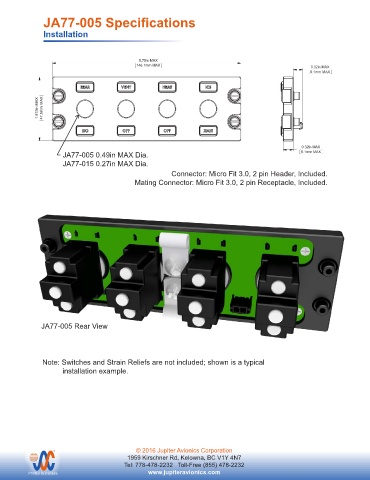

JA77-005 Specifications

Installation

5.75in MAX
146.1mm MAX 0.32in MAX
8.1mm MAX

1.875in MAX 47.6mm MAX

0.32in MAX
JA77-005 0.49in MAX Dia. 8.1mm MAX
JA77-015 0.27in MAX Dia.
Connector: Micro Fit 3.0, 2 pin Header, Included.
Mating Connector: Micro Fit 3.0, 2 pin Receptacle, Included.

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG 5 Dzus - Switch Plate
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA77-005 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
FINISH: N/A TO JUPITER AVIONICS CORP. JA77-005 Mechanical Installation Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT

JA77-005 Rear View

Note: Switches and Strain Reliefs are not included; shown is a typical
installation example.
