Page 41 - Jupiter Product Guide 2024 Rev M

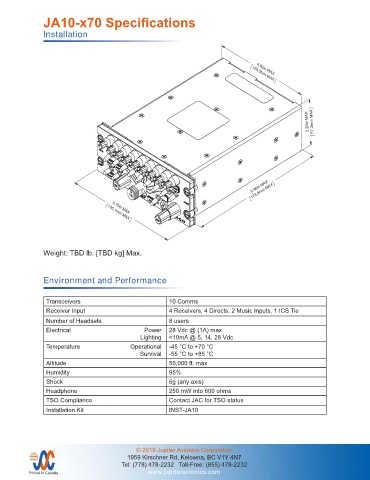

JA10-x70 Specifications

Installation 125.0mm MAX

4.92in MAX

2.25in MAX 57.2mm MAX

6.96in MAX
176.8mm MAX

5.75in MAX
146.1mm MAX

Weight: TBD lb. [TBD kg] Max.

UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
Environment and Performance
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Audio Controller - Ten Transceiver with RX Volume
Control
Transceivers 10 Comms NCAGE CODE PART NO. SHEET
APPROVED
1/1
JA10-070
L00N3
Receiver Input MATERIAL: N/A 4 Receivers, 4 Directs, 2 Music Inputs, 1 ICS Tie
CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
Number of Headsets FINISH: N/A 8 users JA10-070 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Electrical Power 28 Vdc @ (1A) max
Lighting <10mA @ 5, 14, 28 Vdc
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 250 mW into 600 ohms
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA10

© 2019 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: (778) 478-2232 Toll-Free: (855) 478-2232
Printed in Canada www.jupiteravionics.com
