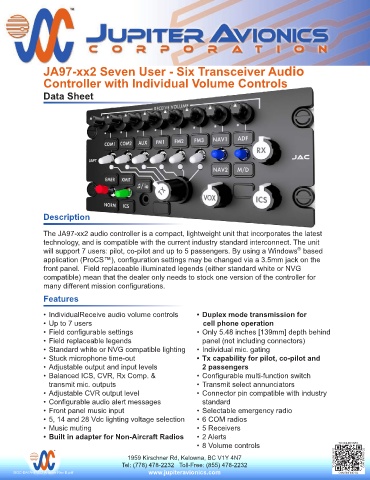

Page 36 - Jupiter Product Guide 2024 Rev M

JA97-xx2 Seven User - Six Transceiver Audio
Controller with Individual Volume Controls

Data Sheet

Description

The JA97-xx2 audio controller is a compact, lightweight unit that incorporates the latest
technology, and is compatible with the current industry standard interconnect. The unit
®
will support 7 users: pilot, co-pilot and up to 5 passengers. By using a Windows based
application (ProCS™), configuration settings may be changed via a 3.5mm jack on the
front panel. Field replaceable illuminated legends (either standard white or NVG
compatible) mean that the dealer only needs to stock one version of the controller for
many different mission configurations.
Features

• IndividualReceive audio volume controls • Duplex mode transmission for
• Up to 7 users cell phone operation
• Field configurable settings • Only 5.48 inches [139mm] depth behind
• Field replaceable legends panel (not including connectors)
• Standard white or NVG compatible lighting • Individual mic. gating
• Stuck microphone time-out • Tx capability for pilot, co-pilot and
• Adjustable output and input levels 2 passengers
• Balanced ICS, CVR, Rx Comp. & • Configurable multi-function switch
trans mit mic. outputs • Transmit select annunciators
• Adjustable CVR output level • Connector pin compatible with industry
• Configurable audio alert messages standard
• Front panel music input • Selectable emergency radio
• 5, 14 and 28 Vdc lighting voltage selection • 6 COM radios
• Music muting • 5 Receivers
• Built in adapter for Non-Aircraft Radios • 2 Alerts
• 8 Volume controls TO ONLINE INFO
