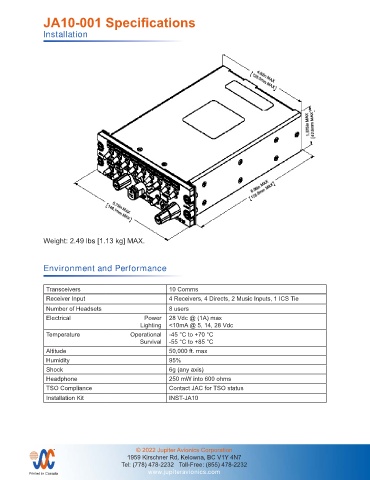

JA10-001 Specifications
Installation
Weight: 2.49 lbs [1.13 kg] MAX.
Environment and Performance
Transceivers 10 Comms
Receiver Input 4 Receivers, 4 Directs, 2 Music Inputs, 1 ICS Tie
Number of Headsets 8 users
Electrical Power 28 Vdc @ (1A) max
Lighting <10mA @ 5, 14, 28 Vdc
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 250 mW into 600 ohms
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA10
