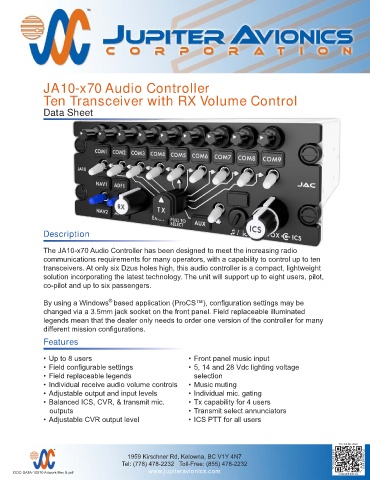

JA10-x70 Audio Controller

Ten Transceiver with RX Volume Control

Data Sheet

Description

The JA10-x70 Audio Controller has been designed to meet the increasing radio
communications requirements for many operators, with a capability to control up to ten
transceivers. At only six Dzus holes high, this audio controller is a compact, lightweight
solution incorporating the latest technology. The unit will support up to eight users, pilot,
co-pilot and up to six passengers.

By using a Windows based application (ProCS™), configuration settings may be
®
changed via a 3.5mm jack socket on the front panel. Field replaceable illuminated
legends mean that the dealer only needs to order one version of the controller for many
different mission configurations.
Features

• Up to 8 users • Front panel music input
• Field configurable settings • 5, 14 and 28 Vdc lighting voltage
• Field replaceable legends selection
• Individual receive audio volume controls • Music muting
• Adjustable output and input levels • Individual mic. gating
• Balanced ICS, CVR, & transmit mic. • Tx capability for 4 users
outputs • Transmit select annunciators
• Adjustable CVR output level • ICS PTT for all users
