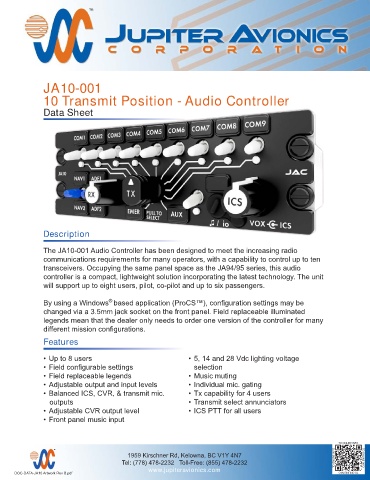

JA10-001
10 Transmit Position - Audio Controller
Data Sheet
Description
The JA10-001 Audio Controller has been designed to meet the increasing radio
communications requirements for many operators, with a capability to control up to ten
transceivers. Occupying the same panel space as the JA94/95 series, this audio
controller is a compact, lightweight solution incorporating the latest technology. The unit
will support up to eight users, pilot, co-pilot and up to six passengers.
By using a Windows based application (ProCS™), configuration settings may be
®
changed via a 3.5mm jack socket on the front panel. Field replaceable illuminated
legends mean that the dealer only needs to order one version of the controller for many
different mission configurations.
Features
• Up to 8 users • 5, 14 and 28 Vdc lighting voltage
• Field configurable settings selection
• Field replaceable legends • Music muting
• Adjustable output and input levels • Individual mic. gating
• Balanced ICS, CVR, & transmit mic. • Tx capability for 4 users
outputs • Transmit select annunciators
• Adjustable CVR output level • ICS PTT for all users
• Front panel music input
