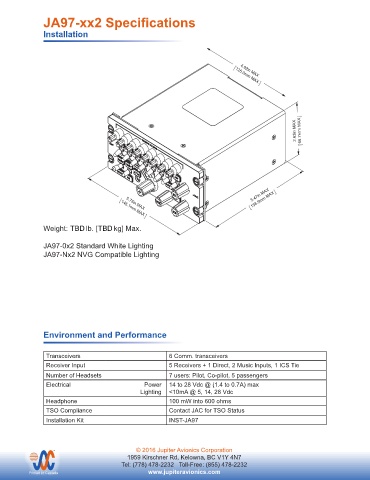

JA97-xx2 Specifications

Installation 125.0mm MAX

4.92in MAX

2.63in MAX 66.7mm MAX

5.47in MAX
138.9mm MAX

5.75in MAX
146.1mm MAX
TBD
TBD
Weight: ?.?? lb. [?.?? kg] Max.
JA97-0x2 Standard White Lighting
JA97-Nx2 NVG Compatible Lighting
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Seven User - Six Transceiver Audio Controller -
Volume Controls
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA97-001 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA97-001 Fabrication Rev B.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Environment and Performance

Transceivers 6 Comm. transceivers
Receiver Input 5 Receivers + 1 Direct, 2 Music Inputs, 1 ICS Tie
Number of Headsets 7 users: Pilot, Co-pilot, 5 passengers
Electrical Power 14 to 28 Vdc @ (1.4 to 0.7A) max
Lighting <10mA @ 5, 14, 28 Vdc
Headphone 100 mW into 600 ohms
TSO Compliance Contact JAC for TSO Status
Installation Kit INST-JA97
