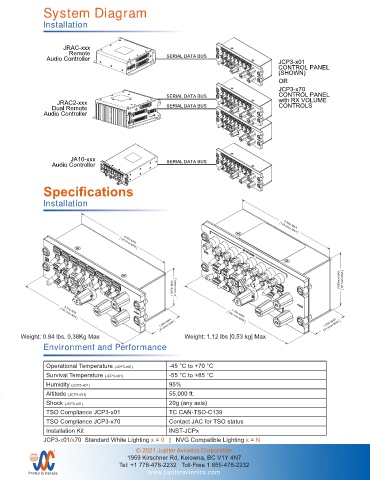

Page 53 - Jupiter Product Guide 2024 Rev M

System Diagram

Installation

JRAC-xxx
Remote
Audio Controller SERIAL DATA BUS
JCP3-x01
CONTROL PANEL
(SHOWN)
OR
JCP3-x70
SERIAL DATA BUS CONTROL PANEL
JRAC2-xxx with RX VOLUME
Dual Remote SERIAL DATA BUS CONTROLS
Audio Controller

JA10-xxx SERIAL DATA BUS
Audio Controller

Specifications

Installation 125.0mm MAX 125.0mm MAX

4.92in MAX

4.92in MAX

1.875in MAX 47.6mm MAX 2.625mm MAX 66.7mm MAX

5.75in MAX
5.75in MAX
146.1mm MAX
1.65in MAX 146.1mm MAX 1.65in MAX
41.9mm MAX
41.9mm MAX
Weight: 0.84 lbs. 0.38Kg Max Weight: 1.12 lbs [0.53 kg] Max
Environment and Performance
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
UNLESS OTHERWISE SPECIFIED PREPARED TAT TOLERANCES: JAC
1 DEC PLACE: 0.1
DIMENSIONS ARE IN INCHES 2 DEC PLACE: 0.01 CHECKED 10-30-19 TITLE
ANGLES ARE IN DEGREES TAT
TOLERANCES: JAC 3 DEC PLACE: 0.005 Control Panel with RX Volume Controls
ANGLES:
0.5 DEG
Operational Temperature (JCP3-x01) -45 °C to +70 °C
1 DEC PLACE: 0.1
CHECKED
05-11-15
2 DEC PLACE:
TITLE
0.01
3 DEC PLACE: 0.005 TAT JAC
ANGLES: 0.5 DEG Control Panel APPROVED 10-30-19 NCAGE CODE PART NO. SHEET
Survival Temperature (JCP3-x01) -55 °C to +85 °C KDV L00N3 JCP3-070 1/1
JAC
APPROVED 05-19-15 NCAGE CODE PART NO. SHEET MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
KDV L00N3 JCP3-001 1/1 TO JUPITER AVIONICS CORP. JCP3-070 3D Model Rev A.SLDDRW
Humidity (JCP3-x01) CONFIDENTIAL & PROPRIETARY DOC. NO. 95% FINISH: N/A DRAWING NOT TO SCALE
N/A
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
MATERIAL:
FINISH: N/A TO JUPITER AVIONICS CORP. JCP3-001 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
Altitude (JCP3-x01)
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT 55,000 ft.
Shock (JCP3-x01) 20g (any axis)
TSO Compliance JCP3-x01 TC CAN-TSO-C139
TSO Compliance JCP3-x70 Contact JAC for TSO status
Installation Kit INST-JCPx
JCP3-x01/x70 Standard White Lighting x = 0 | NVG Compatible Lighting x = N
© 2021 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: +1 778-478-2232 Toll-Free 1 855-478-2232
Printed in Canada www.jupiteravionics.com
