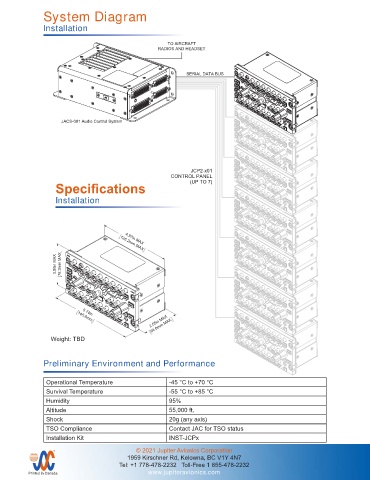

System Diagram
Installation

TO AIRCRAFT
RADIOS AND HEADSET

SERIAL DATA BUS

JACS-001 Audio Control System

JCP2-x01
CONTROL PANEL
(UP TO 7)
Specifications
Installation

4.97in MAX
3.00in MAX 76.2mm MAX 126.2mm MAX

5.74in
2.55in MAX
64.8mm MAX
145.8mm
Weight: TBD

UNLESS OTHERWISE SPECIFIED PREPARED TAT
Preliminary Environment and Performance
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
JAC
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 11-16-21 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Control Panel
JAC
APPROVED 01-26-22 NCAGE CODE PART NO. SHEET
-45 °C to +70 °C
Operational Temperature KDV L00N3 JCP2-001 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
-55 °C to +85 °C
Survival Temperature DRAWING NOT TO SCALE JCP2-001 3D Model Rev B.SLDDRW
N/A
FINISH:
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Humidity 95%
Altitude 55,000 ft.
Shock 20g (any axis)
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JCPx
