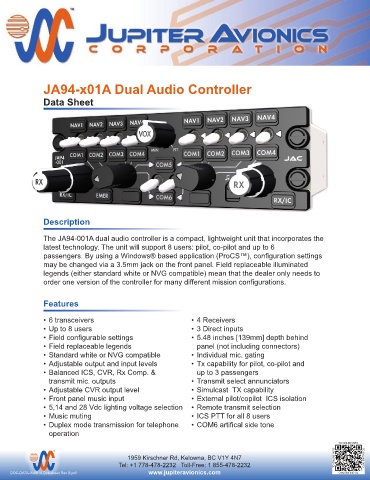

JA94-x01A Dual Audio Controller

Data Sheet

Description

The JA94-001A dual audio controller is a compact, lightweight unit that incorporates the
latest technology. The unit will support 8 users: pilot, co-pilot and up to 6
passengers. By using a Windows® based application (ProCS™), configuration settings
may be changed via a 3.5mm jack on the front panel. Field replaceable illuminated
legends (either standard white or NVG compatible) mean that the dealer only needs to
order one version of the controller for many different mission configurations.

Features

• 6 transceivers • 4 Receivers
• Up to 8 users • 3 Direct inputs
• Field configurable settings • 5.48 inches [139mm] depth behind
• Field replaceable legends panel (not including connectors)
• Standard white or NVG compatible • Individual mic. gating
• Adjustable output and input levels • Tx capability for pilot, co-pilot and
• Balanced ICS, CVR, Rx Comp. & up to 3 passengers
transmit mic. outputs • Transmit select annunciators
• Adjustable CVR output level • Simulcast TX capability
• Front panel music input • External pilot/copilot ICS isolation
• 5,14 and 28 Vdc lighting voltage selection • Remote transmit selection
• Music muting • ICS PTT for all 8 users
• Duplex mode transmission for telephone • COM6 artifical side tone
operation
