Page 35 - Jupiter Product Guide 2024 Rev M

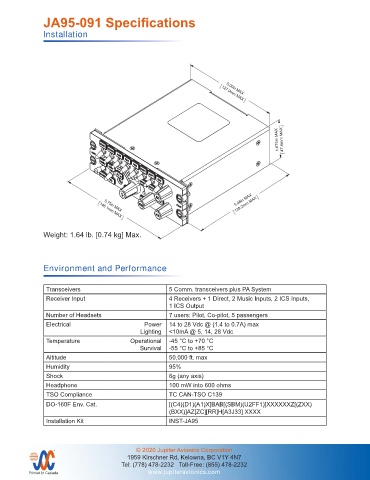

JA95-091 Specifications

Installation

5.00in MAX
127.0mm MAX

1.875in MAX 47.6mm MAX

5.48in MAX
139.2mm MAX
5.75in MAX
146.1mm MAX

Weight: 1.64 lb. [0.74 kg] Max.

Environment and Performance
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 03-26-20 TITLE
TAT
Transceivers 3 DEC PLACE: 0.005 5 Comm. transceivers plus PA System
Audio Controller - Dual ICS Input
ANGLES: 0.5 DEG
JAC
Receiver Input 4 Receivers + 1 Direct, 2 Music Inputs, 2 ICS Inputs, SHEET
NCAGE CODE
PART NO.
03-26-20
APPROVED
1 ICS Output L00N3 JA95-091 1/1
KDV
CONFIDENTIAL & PROPRIETARY DOC. NO.
Number of Headsets MATERIAL: N/A 7 users: Pilot, Co-pilot, 5 passengers
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA95-091 3D Model Rev A.SLDDRW
Electrical Power 14 to 28 Vdc @ (1.4 to 0.7A) max
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Lighting <10mA @ 5, 14, 28 Vdc
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 100 mW into 600 ohms
TSO Compliance TC CAN-TSO C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-JA95

© 2020 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: (778) 478-2232 Toll-Free: (855) 478-2232
Printed in Canada www.jupiteravionics.com
