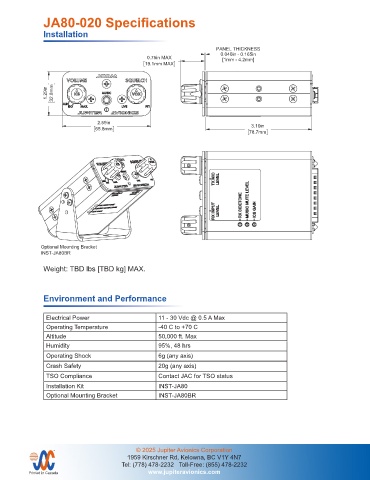

JA80-020 Specifications

Installation

PANEL THICKNESS
0.040in - 0.165in
0.75in MAX [1mm - 4.2mm]
19.1mm MAX

1.29in 32.8mm

2.59in 3.10in
65.8mm
78.7mm

UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005 Panel Mount Intercom - 4 Place
ANGLES: 0.5 DEG
APPROVED NCAGE CODE PART NO. SHEET
Optional Mounting Bracket L00N3 JA80-020 1/1
INST-JA80BR MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA80-020 Mechanical Installation Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEB REV B.DRWDOT
Weight: TBD lbs [TBD kg] MAX.

Environment and Performance

Electrical Power 11 - 30 Vdc @ 0.5 A Max
Operating Temperature -40 C to +70 C
Altitude 50,000 ft. Max
Humidity 95%, 48 hrs
Operating Shock 6g (any axis)

Crash Safety 20g (any axis)
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA80
Optional Mounting Bracket INST-JA80BR
