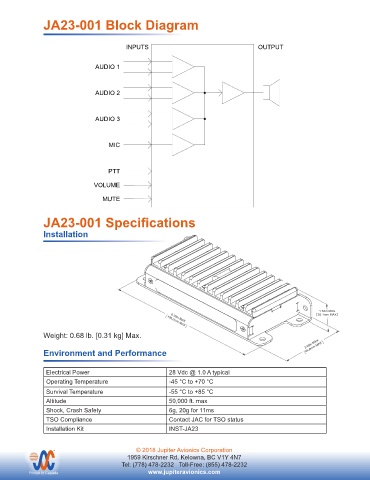

Page 61 - Jupiter Product Guide 2024 Rev M

JA23-030 Block Diagram

INPUTS OUTPUT

AUDIO 1

+
AUDIO 2
-

AUDIO 3

MIC

PTT

MUTE

JA23-030 Specifications

Installation

2.60in MAX 66.0mm MAX

6.30in MAX
160.0mm MAX

2.75in MAX
Weight: TBD lb. [TBD kg] Max. 69.9mm MAX

Environment and Performance UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES PREPARED TAT
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 TITLE
3 DEC PLACE: 0.005 Speaker Amplifier - 40 Watt
ANGLES:
0.5 DEG
Electrical Power 28 Vdc @ 1.0 A typical
APPROVED NCAGE CODE PART NO. SHEET
Operating Temperature -45 °C to +70 °C L00N3 JA23-040 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
JA23-040 3D Model Rev A.SLDDRW
N/A
Survival Temperature -55 °C to +85 °C DRAWING NOT TO SCALE
FINISH:
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Altitude 55,000 ft. max
Shock, Crash Safety 6g, 20g for 11ms
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA23
