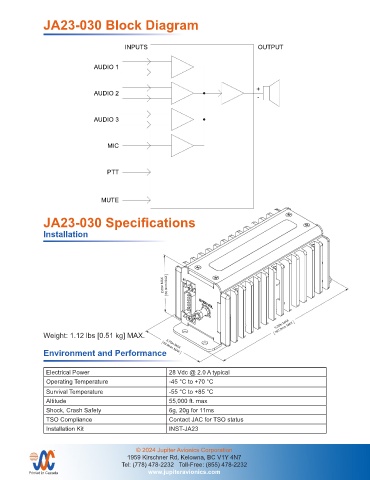

Page 63 - Jupiter Product Guide 2025 Rev N

JA23-030 Block Diagram

INPUTS OUTPUT

AUDIO 1

+
AUDIO 2
-

AUDIO 3

MIC

PTT

MUTE

JA23-030 Specifications

Installation

2.60in MAX 66.0mm MAX

6.30in MAX
160.0mm MAX
Weight: 1.12 lbs [0.51 kg] MAX.

Environment and Performance 2.75in MAX
69.9mm MAX

Electrical Power 28 Vdc @ 2.0 A typical PREPARED TAT
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES:
JAC
Operating Temperature -45 °C to +70 °C CHECKED 05-27-19 TITLE
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005 TAT Speaker Amplifier - 30 Watt
0.5 DEG
ANGLES:
Survival Temperature -55 °C to +85 °C JAC
APPROVED 05-27-19 NCAGE CODE PART NO. SHEET
Altitude 55,000 ft. max KDV L00N3 JA23-030 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
Shock, Crash Safety 6g, 20g for 11ms TO JUPITER AVIONICS CORP. JA23-030 3D Model Rev A.SLDDRW
N/A
FINISH:
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA23
© 2024 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: (778) 478-2232 Toll-Free: (855) 478-2232
Printed in Canada www.jupiteravionics.com
