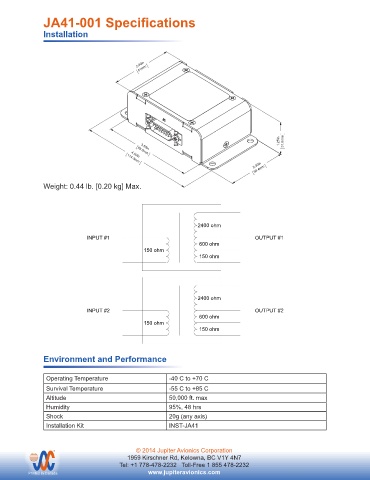

JA41-001 Specifications

Installation

2.40in
61mm

1.25in 31.8mm
3.50in
88.9mm
4.50in
114.3mm
2.30in
58.4mm
Weight: 0.44 lb. [0.20 kg] Max.

UNLESS OTHERWISE SPECIFIED PREPARED
DIMENSIONS ARE IN INCHES TAT
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 CHECKED 10-10-13
TITLE
2 DEC PLACE: 0.01 2400 ohm
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG JA41-001 3D MODEL
INPUT #1 JAC NCAGE CODE OUTPUT #1
APPROVED 10-10-13 SIZE PART NO. SHEET
600 ohm A L00N3 JA41-001 1/1
KDV
150 ohm
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY
150 ohm
FINISH: N/A TO JUPITER AVIONICS CORP. DOC. NO. JA41-001 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA.DRWDOT
2400 ohm
INPUT #2 OUTPUT #2
600 ohm
150 ohm
150 ohm

Environment and Performance

Operating Temperature -40 C to +70 C
Survival Temperature -55 C to +85 C
Altitude 50,000 ft. max
Humidity 95%, 48 hrs
Shock 20g (any axis)
Installation Kit INST-JA41
