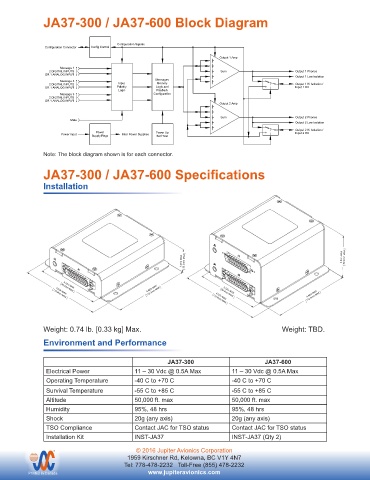

Page 95 - Jupiter Product Guide 2024 Rev M

JA37-300 / JA37-600 Block Diagram

Configuration Signals
Configuration Connector Config Control
Output 1 Amp

Message 1
2 DIGITAL INPUTS Sum Output 1 Phones
OR 1 ANALOG INPUT Output 1 Low Isolation
Message 2 Messages
2 DIGITAL INPUTS Input Memory Output 1 Hi Isolation /
OR 1 ANALOG INPUT Polarity Logic and Input 1 RX
Logic Playback
Message 3 Configuration
2 DIGITAL INPUTS
OR 1 ANALOG INPUT
Output 2 Amp
Sum Output 2 Phones
Mute
Output 2 Low Isolation
Output 2 Hi Isolation /
Power Power Up Input 2 RX
Power Input Inter Power Supplies
Supply Regs Self Test
Note: The block diagram shown is for each connector.
JA37-300 / JA37-600 Specifications

Installation

1.27in MAX 32.3mm MAX 2.34in MAX 59.4mm MAX

4.42in MAX 114.8mm MAX 4.42in MAX
112.3mm MAX
3.52in MAX
89.4mm MAX
112.3mm MAX
3.52in MAX
4.52in MAX
89.4mm MAX
114.8mm MAX
4.52in MAX
UNLESS OTHERWISE SPECIFIED PREPARED TAT UNLESS OTHERWISE SPECIFIED PREPARED TAT
Weight: 0.74 lb. [0.33 kg] Max. DIMENSIONS ARE IN INCHES Weight: TBD.
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
ANGLES ARE IN DEGREES
JAC
TOLERANCES:
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE:
2 DEC PLACE: 0.01 CHECKED 01-17-14 TITLE 1 DEC PLACE: 0.1 0.01 CHECKED TITLE
3 DEC PLACE: 0.005 TAT 3D Model 3 DEC PLACE: 0.005 Aural Message Generator - 6 Channel - Analog Inputs
0.5 DEG
ANGLES:
ANGLES:
0.5 DEG
Environment and Performance SHEET APPROVED NCAGE CODE PART NO. SHEET
JAC
NCAGE CODE
PART NO.
01-17-14
APPROVED
L00N3
1/1
JA37-001
L00N3
1/1
JA37-600
KDV
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO. MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA37-001 3D Model Rev D.SLDDRW FINISH: N/A JA37-600 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT DRAWING NOT TO SCALE
JA37-300 JA37-600
Electrical Power 11 – 30 Vdc @ 0.5A Max 11 – 30 Vdc @ 0.5A Max
Operating Temperature -40 C to +70 C -40 C to +70 C
Survival Temperature -55 C to +85 C -55 C to +85 C
Altitude 50,000 ft. max 50,000 ft. max
Humidity 95%, 48 hrs 95%, 48 hrs
Shock 20g (any axis) 20g (any axis)
TSO Compliance Contact JAC for TSO status Contact JAC for TSO status
Installation Kit INST-JA37 INST-JA37 (Qty 2)
