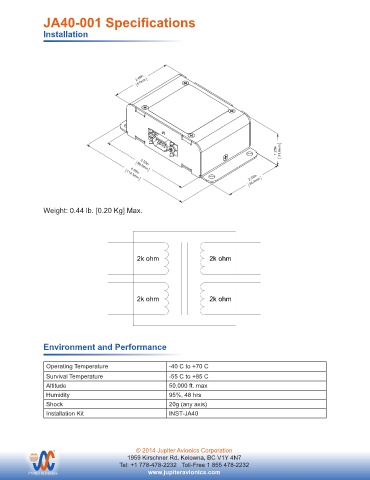

JA40-001 Specifications

Installation

2.40in
61mm

1.25in 31.8mm

3.50in
88.9mm
4.50in
2.30in
114.3mm
58.4mm

Weight: 0.44 lb. [0.20 Kg] Max.

UNLESS OTHERWISE SPECIFIED PREPARED
DIMENSIONS ARE IN INCHES TAT
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 11-26-13 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG ICS Tie Line Isolation Transformer - 4 Channel
JAC SIZE NCAGE CODE PART NO. SHEET
11-27-13
2k ohm APPROVED KDV 2k ohm L00N3 JA40-001 1/1
A
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY
FINISH: N/A TO JUPITER AVIONICS CORP. DOC. NO. JA40-001 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA.DRWDOT
2k ohm 2k ohm

Environment and Performance

Operating Temperature -40 C to +70 C
Survival Temperature -55 C to +85 C
Altitude 50,000 ft. max
Humidity 95%, 48 hrs
Shock 20g (any axis)
Installation Kit INST-JA40
