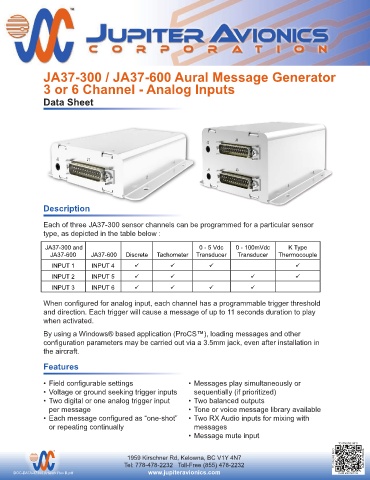

Page 94 - Jupiter Product Guide 2024 Rev M

JA37-300 / JA37-600 Aural Message Generator
3 or 6 Channel - Analog Inputs

Data Sheet

Description

Each of three JA37-300 sensor channels can be programmed for a particular sensor
type, as depicted in the table below :

JA37-300 and 0 - 5 Vdc 0 - 100mVdc K Type
JA37-600 JA37-600 Discrete Tachometer Transducer Transducer Thermocouple
INPUT 1 INPUT 4 ü ü ü ü
INPUT 2 INPUT 5 ü ü ü ü
INPUT 3 INPUT 6 ü ü ü ü

When configured for analog input, each channel has a programmable trigger threshold
and direction. Each trigger will cause a message of up to 11 seconds duration to play
when activated.

By using a Windows® based application (ProCS™), loading messages and other
configuration parameters may be carried out via a 3.5mm jack, even after installation in
the aircraft.

Features

• Field configurable settings • Messages play simultaneously or
• Voltage or ground seeking trigger inputs sequentially (if prioritized)
• Two digital or one analog trigger input • Two balanced outputs
per message • Tone or voice message library available
• Each message configured as “one-shot” • Two RX Audio inputs for mixing with
or repeating continually messages
• Message mute input
