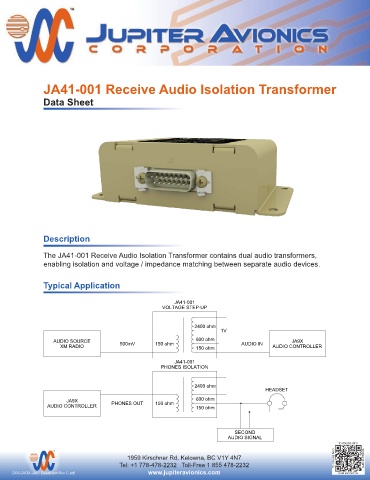

Page 98 - Jupiter Product Guide 2024 Rev M

JA41-001 Receive Audio Isolation Transformer

Data Sheet

Description

The JA41-001 Receive Audio Isolation Transformer contains dual audio transformers,
enabling isolation and voltage / impedance matching between separate audio devices.

Typical Application

JA41-001
VOLTAGE STEP-UP

2400 ohm
1V
AUDIO SOURCE 600 ohm JA9X
XM RADIO 500mV 150 ohm 150 ohm AUDIO IN AUDIO CONTROLLER

JA41-001
PHONES ISOLATION

2400 ohm
HEADSET
JA9X 600 ohm
AUDIO CONTROLLER PHONES OUT 150 ohm 150 ohm

SECOND
AUDIO SIGNAL
TO ONLINE INFO
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7 TO ONLINE INFO TO ONLINE INFO
Tel: +1 778-478-2232 Toll-Free 1 855 478-2232
DOC-DATA-JA41 Datasheet Rev C.pdf www.jupiteravionics.com TO ONLINE INFO
