Page 17 - Jupiter Product Guide 2024 Rev M

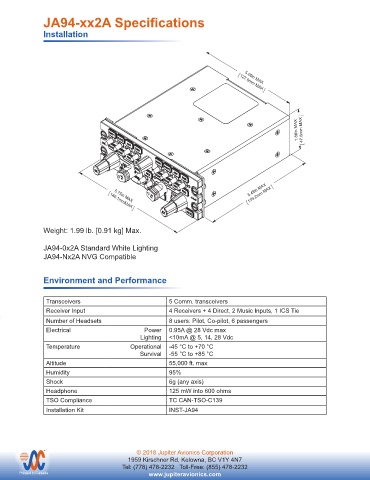

JA94-x44A Specifications

Installation 5.00in MAX

127.0mm MAX

1.875in MAX 47.63mm MAX

5.48in MAX
139.2mm MAX
5.75in MAX
146.1mmMAX

Weight: 1.99 lb. [0.91 kg] Max.

JA94-044A Standard White Lighting
JA94-N44A NVG Compatible
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Environment and Performance JAC
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 05-05-16 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG Dual Audio Controller - AMS44 Compatible
Transceivers 6 Comm. transceivers
JAC
APPROVED 05-05-16 NCAGE CODE PART NO. SHEET
Receiver Input 4 Receivers + 3 Direct, 2 Music Inputs, 1 ICS Tie 1/1
L00N3
JA94-044
KDV
Number of Headsets MATERIAL: N/A 8 users: Pilot, Co-pilot, 6 passengers
CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA94-044 3D Model Rev A.SLDDRW
Electrical
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT Power 0.95A @ 28 Vdc max
Lighting <10mA @ 5, 14, 28 Vdc
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 55,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 250 mW into 600 ohms
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA94
