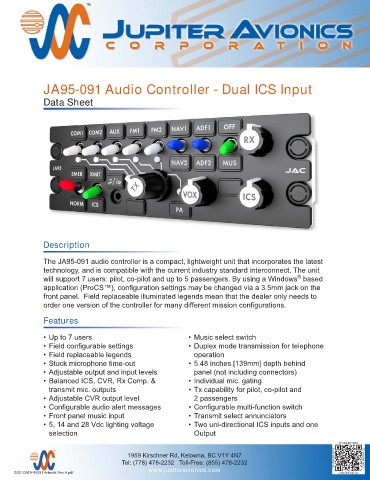

JA95-091 Audio Controller - Dual ICS Input

Data Sheet

Description

The JA95-091 audio controller is a compact, lightweight unit that incorporates the latest
technology, and is compatible with the current industry standard interconnect. The unit
®
will support 7 users: pilot, co-pilot and up to 5 passengers. By using a Windows based
application (ProCS™), configuration settings may be changed via a 3.5mm jack on the
front panel. Field replaceable illuminated legends mean that the dealer only needs to
order one version of the controller for many different mission configurations.

Features

• Up to 7 users • Music select switch
• Field configurable settings • Duplex mode transmission for telephone
• Field replaceable legends operation
• Stuck microphone time-out • 5.48 inches [139mm] depth behind
• Adjustable output and input levels panel (not including connectors)
• Balanced ICS, CVR, Rx Comp. & • Individual mic. gating
trans mit mic. outputs • Tx capability for pilot, co-pilot and
• Adjustable CVR output level 2 passengers
• Configurable audio alert messages • Configurable multi-function switch
• Front panel music input • Transmit select annunciators
• 5, 14 and 28 Vdc lighting voltage • Two uni-directional ICS inputs and one
selection Output
