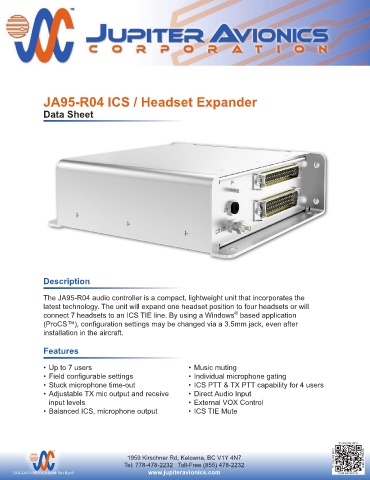

JA95-R04 ICS / Headset Expander
Data Sheet
Description
The JA95-R04 audio controller is a compact, lightweight unit that incorporates the
latest technology. The unit will expand one headset position to four headsets or will
®
connect 7 headsets to an ICS TIE line. By using a Windows based application
(ProCS™), configuration settings may be changed via a 3.5mm jack, even after
installation in the aircraft.
Features
• Up to 7 users • Music muting
• Field configurable settings • Individual microphone gating
• Stuck microphone time-out • ICS PTT & TX PTT capability for 4 users
• Adjustable TX mic output and receive • Direct Audio Input
input levels • External VOX Control
• Balanced ICS, microphone output • ICS TIE Mute
