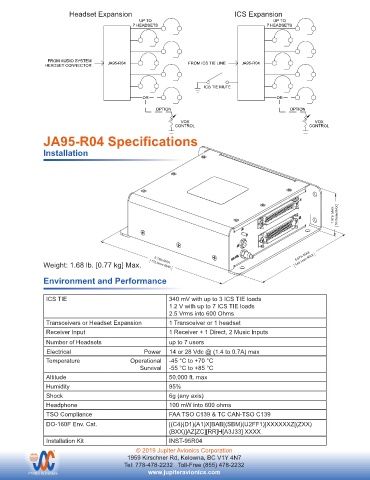

Page 79 - Jupiter Product Guide 2024 Rev M

Headset Expansion ICS Expansion
UP TO UP TO
7 HEADSETS 7 HEADSETS

FROM AUDIO SYSTEM
HEADSET CONNECTOR JA95-R04 FROM ICS TIE LINE JA95-R04

ICS TIE MUTE

OR OR
OPTION OPTION
VOX VOX
CONTROL CONTROL
JA95-R04 Specifications

Installation

1.97in MAX 50.0mm MAX

5.87in MAX
149.1mm MAX
Weight: 1.68 lb. [0.77 kg] Max. 172.5mm MAX
6.79in MAX
Environment and Performance

ICS TIE 340 mV with up to 3 ICS TIE loads
1.2 V with up to 7 ICS TIE loads
UNLESS OTHERWISE SPECIFIED
TAT
PREPARED
DIMENSIONS ARE IN INCHES
2.5 Vrms into 600 Ohms JAC
ANGLES ARE IN DEGREES
TOLERANCES:
JAC
1 DEC PLACE: 0.1 CHECKED INVALID!
12-05-18
01-29-19
Transceivers or Headset Expansion 1 Transceiver or 1 headset TITLE
0.01
2 DEC PLACE:
TAT
0.005
3 DEC PLACE:
TAT
ANGLES: 0.5 DEG Audio Controller - Remote Mount - One Transceiver -
Receiver Input 1 Receiver + 1 Direct, 2 Music Inputs ICS Tie Mute
JAC
JAC
01-29-19
01-23-19
APPROVED INVALID! NCAGE CODE PART NO. SHEET
L00N3
KDV
KDV
Number of Headsets up to 7 users CONFIDENTIAL & PROPRIETARY DOC. NO. JA95-R04 1/1
MATERIAL:
N/A
TO JUPITER AVIONICS CORP.
JA95-R04 3D Model Rev C.SLDDRW
N/A
Electrical JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT Power 14 or 28 Vdc @ (1.4 to 0.7A) max
FINISH:
DRAWING NOT TO SCALE
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 100 mW into 600 ohms
TSO Compliance FAA TSO C139 & TC CAN-TSO C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-95R04
© 2019 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Printed in Canada www.jupiteravionics.com
