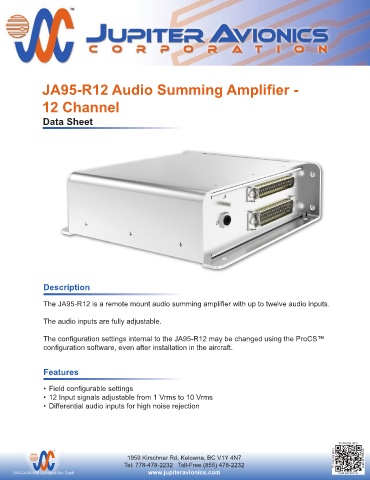

JA95-R12 Audio Summing Amplifi er -

12 Channel

Data Sheet

Description

The JA95-R12 is a remote mount audio summing amplifier with up to twelve audio inputs.

The audio inputs are fully adjustable.

The configuration settings internal to the JA95-R12 may be changed using the ProCS™
configuration software, even after installation in the aircraft.

Features

• Field configurable settings
• 12 Input signals adjustable from 1 Vrms to 10 Vrms
• Differential audio inputs for high noise rejection
