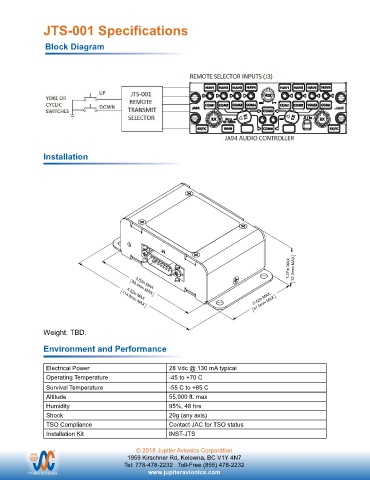

JTS-001 Specifications

Block Diagram

Installation

1.27in MAX 32.3mm MAX

3.52in MAX
2.42in MAX
89.4mm MAX
61.5mm MAX
4.52in MAX
114.8mm MAX

Weight: TBD.

Environment and Performance

Electrical Power UNLESS OTHERWISE SPECIFIED PREPARED TAT
28 Vdc @ 130 mA typical
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
Operating Temperature TOLERANCES: -45 to +70 C
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
0.005
3 DEC PLACE:
Survival Temperature ANGLES: 0.5 DEG -55 C to +85 C Remote Transmit Selector
Altitude 55,000 ft. max NCAGE CODE PART NO. SHEET
APPROVED
1/1
L00N3
JTS-001
Humidity 95%, 48 hrs
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
Shock FINISH: N/A 20g (any axis) JTS-001 3D Model Rev A.SLDDRW
DRAWING NOT TO SCALE
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JTS
© 2018 Jupiter Avionics Corporation
