Page 81 - Jupiter Product Guide 2024 Rev M

EXISTING AUDIO PANEL EXISTING AUDIO PANEL

DIRECT AUDIO INPUT DIRECT AUDIO INPUT
AUDIO 1 OUTPUT
AUDIO 2 OUTPUT

+14 TO +28 VDC AUDIO INPUT 12
AUDIO INPUT 11
ALERT ENABLE
AUDIO INPUT 10
AUDIO INPUT 9
AUDIO INPUT 8
AUDIO INPUT 7
AUDIO INPUT 6
AUDIO INPUT 5
AUDIO INPUT 4
AUDIO INPUT 3
AUDIO INPUT 2
AUDIO INPUT 1
ALERT 1 KEY
ALERT 2 KEY
ALERT 3 KEY
PREPARED

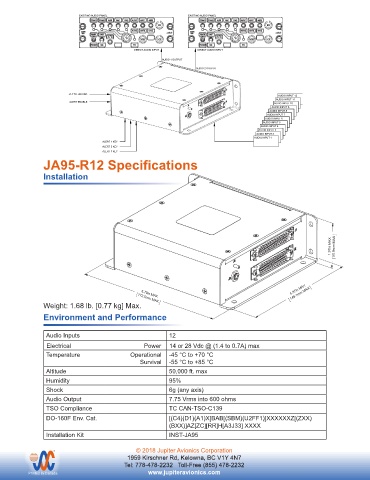

JA95-R12 Specifications TAT
Installation CHECKED 03-26-18
JAC
TITLE
SRM
Audio Controller - Remote Mount - 12 Receivers
JAC Equipment Block Diagram
APPROVED 03-26-18 NCAGE CODE PART NO. SHEET
KDV L00N3 JA95-R12 1/1
DOC NO.
JA95-R12 Equipment Block Diagram Rev A.dwg
JUPITER AVIONICS TEMPLATE AUTOCAD LANDSCAPE SIZEA REV B.DWT
1.97in MAX 50.0mm MAX

5.87in MAX
149.1mm MAX
6.79in MAX
172.5mm MAX
Weight: 1.68 lb. [0.77 kg] Max.
Environment and Performance

Audio Inputs 12
Electrical Power UNLESS OTHERWISE SPECIFIED PREPARED TAT
14 or 28 Vdc @ (1.4 to 0.7A) max
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
Temperature Operational -45 °C to +70 °C 06-07-16 TITLE
JAC
TOLERANCES:
1 DEC PLACE: 0.1
CHECKED
2 DEC PLACE:
0.01
Survival ANGLES: -55 °C to +85 °C TAT Remote Audio Controller
3 DEC PLACE:
0.005
0.5 DEG
JAC
Altitude 50,000 ft. max 06-08-16 NCAGE CODE PART NO. SHEET
APPROVED
L00N3
KDV
Humidity MATERIAL: 95% CONFIDENTIAL & PROPRIETARY DOC. NO. JRAC-001 1/1
N/A
TO JUPITER AVIONICS CORP.
N/A
Shock FINISH: 6g (any axis) DRAWING NOT TO SCALE JRAC-001 3D Model Rev B.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
Audio Output 7.75 Vrms into 600 ohms
TSO Compliance TC CAN-TSO-C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-JA95
© 2018 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Tel: 778-478-2232 Toll-Free (855) 478-2232
www.jupiteravionics.com
Printed in Canada www.jupiteravionics.com
