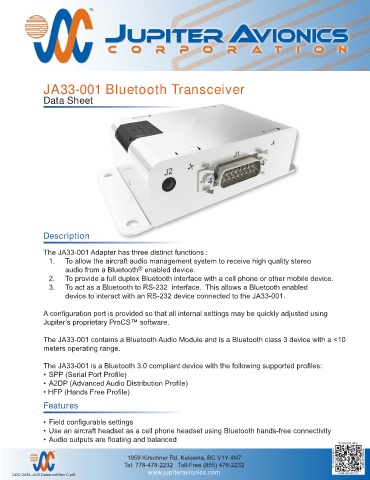

JA33-001 Bluetooth Transceiver

Data Sheet

Description

The JA33-001 Adapter has three distinct functions :
1. To allow the aircraft audio management system to receive high quality stereo
®
audio from a Bluetooth enabled device.
2. To provide a full duplex Bluetooth interface with a cell phone or other mobile device.
3. To act as a Bluetooth to RS-232 interface. This allows a Bluetooth enabled
device to interact with an RS-232 device connected to the JA33-001.

A configuration port is provided so that all internal settings may be quickly adjusted using
Jupiter’s proprietary ProCS™ software.

The JA33-001 contains a Bluetooth Audio Module and is a Bluetooth class 3 device with a <10
meters operating range.

The JA33-001 is a Bluetooth 3.0 compliant device with the following supported profiles:
• SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• HFP (Hands Free Profile)
Features

• Field configurable settings
• Use an aircraft headset as a cell phone headset using Bluetooth hands-free connectivity
• Audio outputs are floating and balanced
