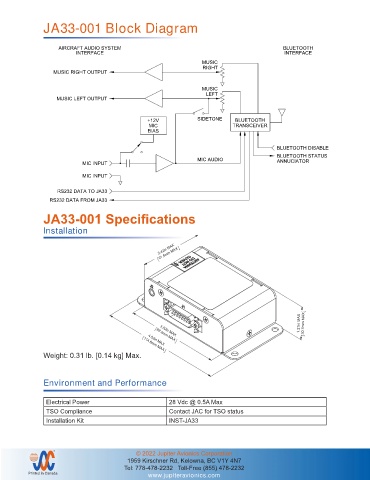

Page 85 - Jupiter Product Guide 2024 Rev M

JA33-001 Block Diagram

AIRCRAFT AUDIO SYSTEM BLUETOOTH
INTERFACE INTERFACE
MUSIC
RIGHT
MUSIC RIGHT OUTPUT

MUSIC
LEFT
MUSIC LEFT OUTPUT

+12V SIDETONE BLUETOOTH
MIC TRANSCEIVER
BIAS

BLUETOOTH DISABLE
BLUETOOTH STATUS
MIC AUDIO ANNUCIATOR
MIC INPUT
MIC INPUT

RS232 DATA TO JA33
RS232 DATA FROM JA33
PREPARED
JA33-001 Specifications TAT TITLE
CHECKED
Installation Bluetooth Transceiver
APPROVED NCAGE CODE PART NO. SHEET
L00N3 JA33-001 1/1
2.42in MAX DOC NO.
JA33-001 Block Diagram (ProCS) Rev A.dwg
JUPITER AVIONICS TEMPLATE AUTOCAD LANDSCAPE SIZEA REV B.DWT 61.5mm MAX

1.21in MAX 30.7mm MAX

3.52in MAX
89.4mm MAX
4.52in MAX
Weight: 0.31 lb. [0.14 kg] Max. 114.8mm MAX

Environment and Performance

28 Vdc @ 0.5A Max
Electrical Power UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
JAC
TSO Compliance TOLERANCES: Contact JAC for TSO status
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 05-18-16 TITLE
0.005
3 DEC PLACE:
Installation Kit ANGLES: 0.5 DEG TAT Bluetooth Transceiver
INST-JA33
JAC
APPROVED 05-19-16 NCAGE CODE PART NO. SHEET
KDV L00N3 JA33-001 1/1
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA33-001 3D Model Rev C.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT
© 2022 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Printed in Canada www.jupiteravionics.com
