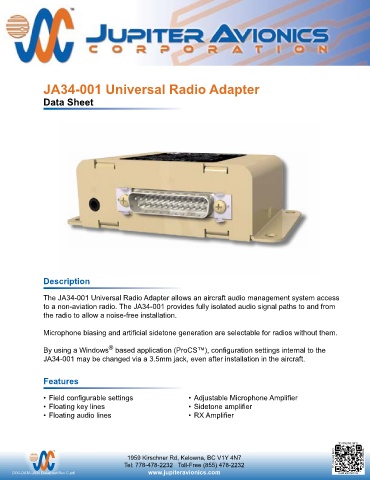

JA34-001 Universal Radio Adapter

Data Sheet

Description

The JA34-001 Universal Radio Adapter allows an aircraft audio management system access
to a non-aviation radio. The JA34-001 provides fully isolated audio signal paths to and from
the radio to allow a noise-free installation.

Microphone biasing and artificial sidetone generation are selectable for radios without them.

®
By using a Windows based application (ProCS™), configuration settings internal to the
JA34-001 may be changed via a 3.5mm jack, even after installation in the aircraft.

Features

• Field configurable settings • Adjustable Microphone Amplifier
• Floating key lines • Sidetone amplifier
• Floating audio lines • RX Amplifier
