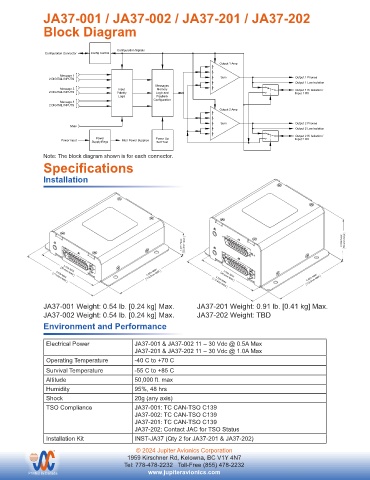

Page 93 - Jupiter Product Guide 2025 Rev N

JA37-001 / JA37-002 / JA37-201 / JA37-202

Block Diagram

Configuration Signals
Configuration Connector Config Control
Output 1 Amp
Message 1
2 DIGITAL INPUTS Sum Output 1 Phones
Output 1 Low Isolation
Messages
Message 2 Input Memory Output 1 Hi Isolation /
2 DIGITAL INPUTS Polarity Logic and Input 1 RX
Logic Playback
Configuration
Message 3
2 DIGITAL INPUTS
Output 2 Amp
Sum Output 2 Phones
Mute
Output 2 Low Isolation
Output 2 Hi Isolation /
Power Power Up Input 2 RX
Power Input Inter Power Supplies
Supply Regs Self Test
Note: The block diagram shown is for each connector.
Specifications
Installation

1.27in MAX 32.3mm MAX 2.34in MAX 59.4mm MAX

4.42in MAX 114.8mm MAX 4.42in MAX
112.3mm MAX
3.52in MAX
89.4mm MAX
112.3mm MAX
3.52in MAX
4.52in MAX
89.4mm MAX
114.8mm MAX
4.52in MAX
JA37-001 Weight: 0.54 lb. [0.24 kg] Max. JA37-201 Weight: 0.91 lb. [0.41 kg] Max.
UNLESS OTHERWISE SPECIFIED
UNLESS OTHERWISE SPECIFIED
TAT
PREPARED
PREPARED
TAT
DIMENSIONS ARE IN INCHES
DIMENSIONS ARE IN INCHES
JA37-002 Weight: 0.54 lb. [0.24 kg] Max. JA37-202 Weight: TBD 05-01-23
ANGLES ARE IN DEGREES
ANGLES ARE IN DEGREES
JAC
TOLERANCES:
TOLERANCES:
JAC
1 DEC PLACE: 0.1
1 DEC PLACE: 0.1
CHECKED
CHECKED
01-17-14
2 DEC PLACE: 0.01
3 DEC PLACE: 0.005 TAT TITLE 3D Model 2 DEC PLACE: 0.01 TAT TITLE Aural Message Generator - 6 Channel - Analog Inputs
3 DEC PLACE: 0.005
ANGLES:
0.5 DEG
ANGLES:
0.5 DEG
Environment and Performance SHEET APPROVED 04-22-24 NCAGE CODE PART NO. SHEET
JAC
JAC
NCAGE CODE
PART NO.
APPROVED
01-17-14
1/1
L00N3
L00N3
1/1
JA37-001
JA37-600
KDV
KDV
MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO. MATERIAL: N/A CONFIDENTIAL & PROPRIETARY DOC. NO.
TO JUPITER AVIONICS CORP.
TO JUPITER AVIONICS CORP.
FINISH: N/A DRAWING NOT TO SCALE JA37-001 3D Model Rev D.SLDDRW FINISH: N/A JA37-600 3D Model Rev A.SLDDRW
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT DRAWING NOT TO SCALE
Electrical Power JA37-001 & JA37-002 11 – 30 Vdc @ 0.5A Max
JA37-201 & JA37-202 11 – 30 Vdc @ 1.0A Max
Operating Temperature -40 C to +70 C
Survival Temperature -55 C to +85 C
Altitude 50,000 ft. max
Humidity 95%, 48 hrs
Shock 20g (any axis)
TSO Compliance JA37-001: TC CAN-TSO C139
JA37-002: TC CAN-TSO C139
JA37-201: TC CAN-TSO C139
JA37-202: Contact JAC for TSO Status
Installation Kit INST-JA37 (Qty 2 for JA37-201 & JA37-202)
© 2024 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: 778-478-2232 Toll-Free (855) 478-2232
Printed in Canada www.jupiteravionics.com
