Page 19 - Jupiter Product Guide 2024 Rev M

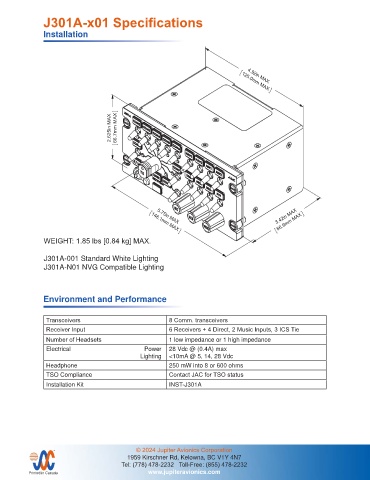

J301A-x01 Specifications

Installation 125.0mm MAX

4.92in MAX

2.625in MAX 66.7mm MAX

3.42in MAX
86.9mm MAX
5.75in MAX
146.1mm MAX
WEIGHT: 1.85 lbs [0.84 kg] MAX.

J301A-001 Standard White Lighting
J301A-N01 NVG Compatible Lighting

Environment and Performance PREPARED TAT
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
ANGLES ARE IN DEGREES
TOLERANCES: JAC
1 DEC PLACE: 0.1 CHECKED
2 DEC PLACE: 0.01 01-21-22 TITLE
8 Comm. transceivers
Transceivers 3 DEC PLACE: 0.005 TAT Audio Controller
ANGLES: 0.5 DEG
Receiver Input 6 Receivers + 4 Direct, 2 Music Inputs, 3 ICS Tie
JAC
NCAGE CODE
01-24-22
APPROVED
Number of Headsets 1 low impedance or 1 high impedance PART NO. SHEET
L00N3
1/1
J301A-001
KDV
Electrical Power 28 Vdc @ (0.4A) max DOC. NO.
CONFIDENTIAL & PROPRIETARY
N/A
MATERIAL:
TO JUPITER AVIONICS CORP.
Lighting N/A <10mA @ 5, 14, 28 Vdc J301A-001 3D Model Rev C.SLDDRW
FINISH:
DRAWING NOT TO SCALE
Headphone
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT 250 mW into 8 or 600 ohms
TSO Compliance Contact JAC for TSO status
Installation Kit INST-J301A
© 2024 Jupiter Avionics Corporation
TM
1959 Kirschner Rd, Kelowna, BC V1Y 4N7
Tel: (778) 478-2232 Toll-Free: (855) 478-2232
Printed in Canada www.jupiteravionics.com
