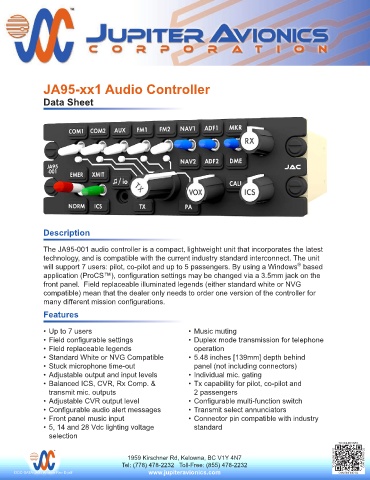

JA95-xx1 Audio Controller

Data Sheet

Description

The JA95-001 audio controller is a compact, lightweight unit that incorporates the latest
technology, and is compatible with the current industry standard interconnect. The unit
®
will support 7 users: pilot, co-pilot and up to 5 passengers. By using a Windows based
application (ProCS™), configuration settings may be changed via a 3.5mm jack on the
front panel. Field replaceable illuminated legends (either standard white or NVG
compatible) mean that the dealer only needs to order one version of the controller for
many different mission configurations.

Features

• Up to 7 users • Music muting
• Field configurable settings • Duplex mode transmission for telephone
• Field replaceable legends operation
• Standard White or NVG Compatible • 5.48 inches [139mm] depth behind
• Stuck microphone time-out panel (not including connectors)
• Adjustable output and input levels • Individual mic. gating
• Balanced ICS, CVR, Rx Comp. & • Tx capability for pilot, co-pilot and
trans mit mic. outputs 2 passengers
• Adjustable CVR output level • Configurable multi-function switch
• Configurable audio alert messages • Transmit select annunciators
• Front panel music input • Connector pin compatible with industry
• 5, 14 and 28 Vdc lighting voltage standard
selection
