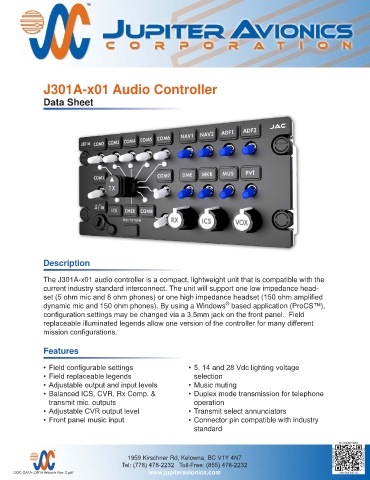

Page 18 - Jupiter Product Guide 2024 Rev M

J301A-x01 Audio Controller

Data Sheet

Description

The J301A-x01 audio controller is a compact, lightweight unit that is compatible with the
current industry standard interconnect. The unit will support one low impedance head-
set (5 ohm mic and 8 ohm phones) or one high impedance headset (150 ohm amplified
®
dynamic mic and 150 ohm phones). By using a Windows based application (ProCS™),
configuration settings may be changed via a 3.5mm jack on the front panel. Field
replaceable illuminated legends allow one version of the controller for many different
mission configurations.

Features

• Field configurable settings • 5, 14 and 28 Vdc lighting voltage
• Field replaceable legends selection
• Adjustable output and input levels • Music muting
• Balanced ICS, CVR, Rx Comp. & • Duplex mode transmission for telephone
trans mit mic. outputs operation
• Adjustable CVR output level • Transmit select annunciators
• Front panel music input • Connector pin compatible with industry
standard
