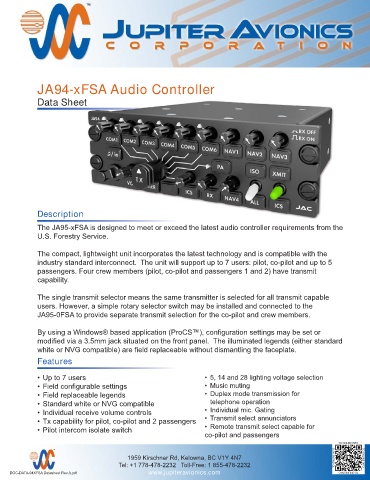

JA94-xFSA Audio Controller

Data Sheet

Description

The JA95-xFSA is designed to meet or exceed the latest audio controller requirements from the
U.S. Forestry Service.

The compact, lightweight unit incorporates the latest technology and is compatible with the
industry standard interconnect. The unit will support up to 7 users: pilot, co-pilot and up to 5
passengers. Four crew members (pilot, co-pilot and passengers 1 and 2) have transmit
capability.

The single transmit selector means the same transmitter is selected for all transmit capable
users. However, a simple rotary selector switch may be installed and connected to the
JA95-0FSA to provide separate transmit selection for the co-pilot and crew members.

By using a Windows® based application (ProCS™), configuration settings may be set or
modified via a 3.5mm jack situated on the front panel. The illuminated legends (either standard
white or NVG compatible) are field replaceable without dismantling the faceplate.
Features

• Up to 7 users • 5, 14 and 28 lighting voltage selection
• Field configurable settings • Music muting
• Field replaceable legends • Duplex mode transmission for
• Standard white or NVG compatible telephone operation
• Individual receive volume controls • Individual mic. Gating
• Tx capability for pilot, co-pilot and 2 passengers • Transmit select annunciators
• Pilot intercom isolate switch • Remote transmit select capable for
co-pilot and passengers
