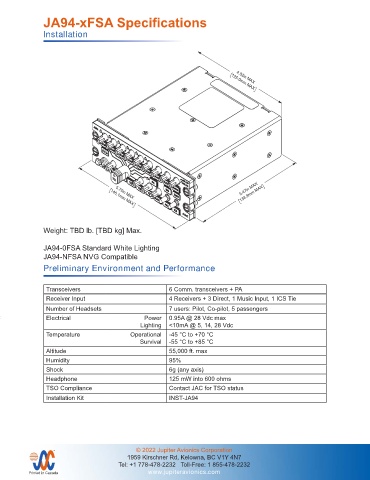

Page 21 - Jupiter Product Guide 2024 Rev M

JA94-xFSA Specifications

Installation 125.0mm MAX

4.92in MAX

5.47in MAX
138.9mm MAX
5.75in MAX
146.1mm MAX

Weight: TBD lb. [TBD kg] Max.

JA94-0FSA Standard White Lighting
JA94-NFSA NVG Compatible
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Preliminary Environment and Performance
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED TITLE
3 DEC PLACE: 0.005
ANGLES: 0.5 DEG Dual Audio Controller - USFS
Transceivers 6 Comm. transceivers + PA
APPROVED NCAGE CODE PART NO. SHEET
Receiver Input 4 Receivers + 3 Direct, 1 Music Input, 1 ICS Tie 1/1
L00N3
JA94-0FSA
DOC. NO.
Number of Headsets MATERIAL: See Notes 7 users: Pilot, Co-pilot, 5 passengers
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
FINISH: See Notes DRAWING NOT TO SCALE JA94-0FSA 3D Model Rev A.SLDDRW
Electrical
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT Power 0.95A @ 28 Vdc max
Lighting <10mA @ 5, 14, 28 Vdc
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 55,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 125 mW into 600 ohms
TSO Compliance Contact JAC for TSO status
Installation Kit INST-JA94
