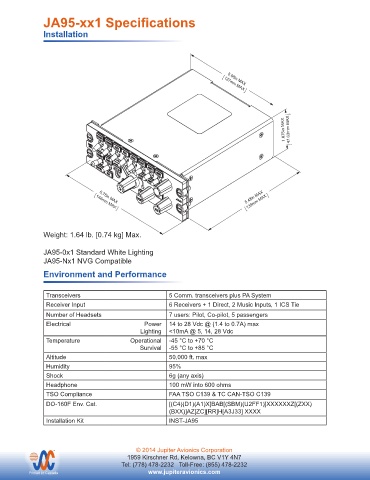

JA95-xx1 Specifications

Installation 5.00in MAX

127mm MAX

1.875in MAX 47.63mm MAX

5.48in MAX
139mm MAX
5.75in MAX
146mm MAX

Weight: 1.64 lb. [0.74 kg] Max.

JA95-0x1 Standard White Lighting
JA95-Nx1 NVG Compatible
UNLESS OTHERWISE SPECIFIED PREPARED TAT
DIMENSIONS ARE IN INCHES
Environment and Performance JAC
ANGLES ARE IN DEGREES
TOLERANCES:
1 DEC PLACE: 0.1
2 DEC PLACE: 0.01 CHECKED 01-16-13 TITLE
3 DEC PLACE: 0.005 TAT
ANGLES: 0.5 DEG 3D Model
JAC
Transceivers 5 Comm. transceivers plus PA System
APPROVED 01-16-13 NCAGE CODE PART NO. SHEET
L00N3
JA95-001
Receiver Input 6 Receivers + 1 Direct, 2 Music Inputs, 1 ICS Tie 1/1
KDV
CONFIDENTIAL & PROPRIETARY DOC. NO.
Number of Headsets MATERIAL: N/A 7 users: Pilot, Co-pilot, 5 passengers
TO JUPITER AVIONICS CORP.
JA95-001 3D Model Rev D.SLDDRW
N/A
FINISH:
Electrical Power 14 to 28 Vdc @ (1.4 to 0.7A) max
JUPITER AVIONICS TEMPLATE SOLIDWORKS LANDSCAPE SIZEA REV B.DRWDOT DRAWING NOT TO SCALE
Lighting <10mA @ 5, 14, 28 Vdc
Temperature Operational -45 °C to +70 °C
Survival -55 °C to +85 °C
Altitude 50,000 ft. max
Humidity 95%
Shock 6g (any axis)
Headphone 100 mW into 600 ohms
TSO Compliance FAA TSO C139 & TC CAN-TSO C139
DO-160F Env. Cat. [(C4)(D1)(A1)X]BAB[(SBM)(U2FF1)]XXXXXXZ[(ZXX)
(BXX)]AZ[ZC][RR]H[A3J33] XXXX
Installation Kit INST-JA95
